Product Features

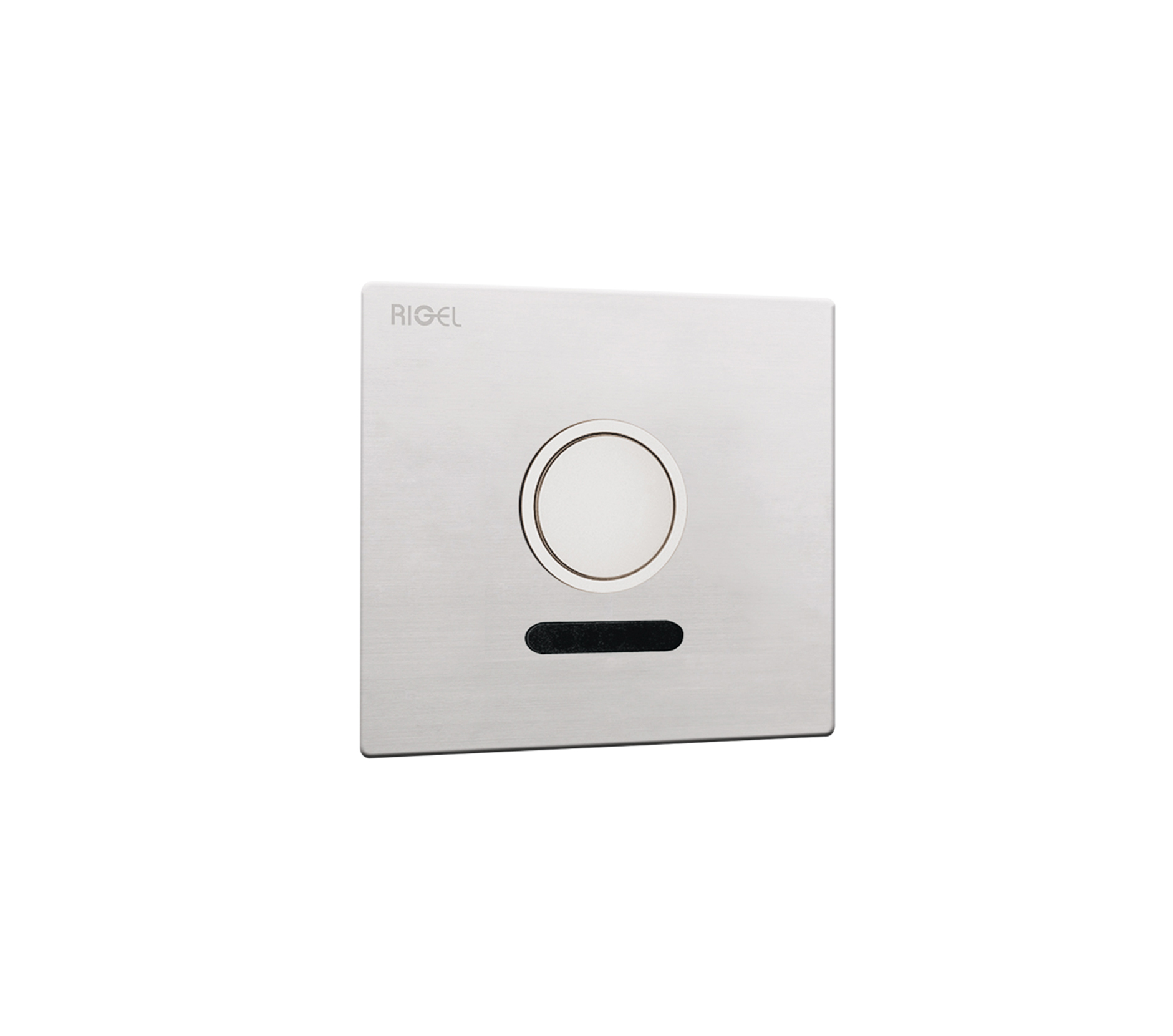

• Automatic infra-red sensor activation urinal flush valve
• Heavy duty S/S grade 304 cover plate with satin finish
• Automatic sensor adjustment on installation
• Piston valve with build-in stainless steel strainer for screening out the debris and self-cleaning solenoid
• Electrical sensor is isolated and sealed in waterproof compartment
• Manual override button incorporated
• Flush every 24 hours of inactivity (optional)

Product Specification

• DImension: 139 (L) x 139 (H) mm
• Material: Brass casting flush valve with stainless steel satin finish panel
• Power supply: 220-240VAC 50/60Hz
• Water supply: G1/2″
• Detection time: 6 seconds
• Detection range: 800mm (default)
• Operating temperature: 0-40°C
• Supply pressure: 100 kPa (flowing) – 800 kPa

Downloads

Cutsheet Instruction Manual
