Product Features

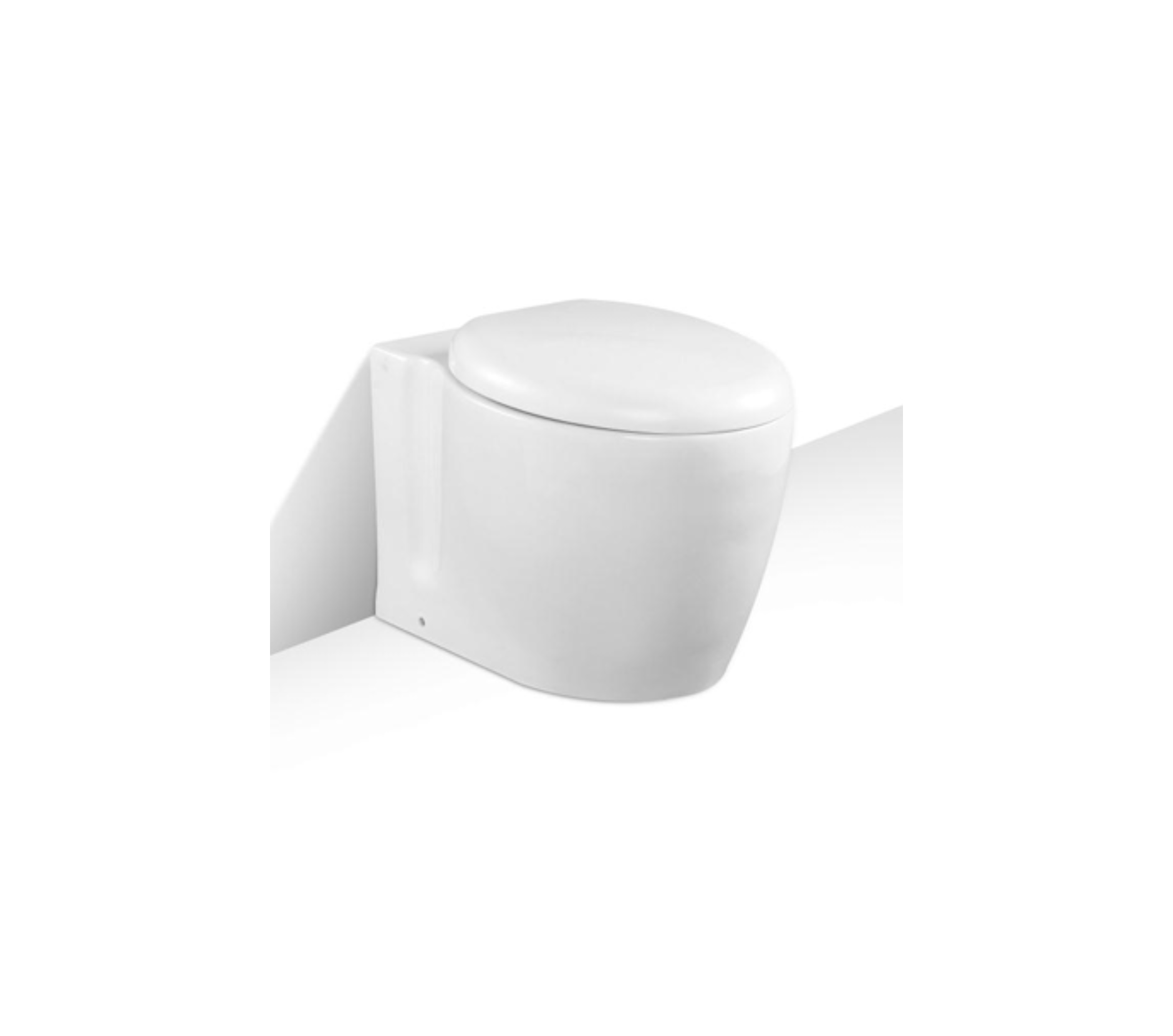

• Low-capacity pedestal water closet
• Pedestal toilet can be paired with Rigel conceal cistern or conceal box flush valve system

Product Specification

• Dimension: 625(L) x 390(W) x 440(H)mm
• Material: Vitreous China
• Rough in: P-Trap 184mm | S-Trap 65mm
• Inner rubber bush: Diameter 55mm
• Trap seal: 50mm minimum
• Minimum water pressure: 135 kPa
• Flushing type: Wash Down

Discharge Volume

• Full flush: 4.5 – 6.0 litre/flush
• Reduced flush: 3.0 litre/flush

Standard Accessories

• FT-SC0101PS – Polypropylene soft-closing seat and cover
• FT-BSHWC5530 – WC inlet rubber bush, ID32mm
• FT-PCPS-VT103 – Flexible trap connector

Downloads

Cutsheet Installation Manual
