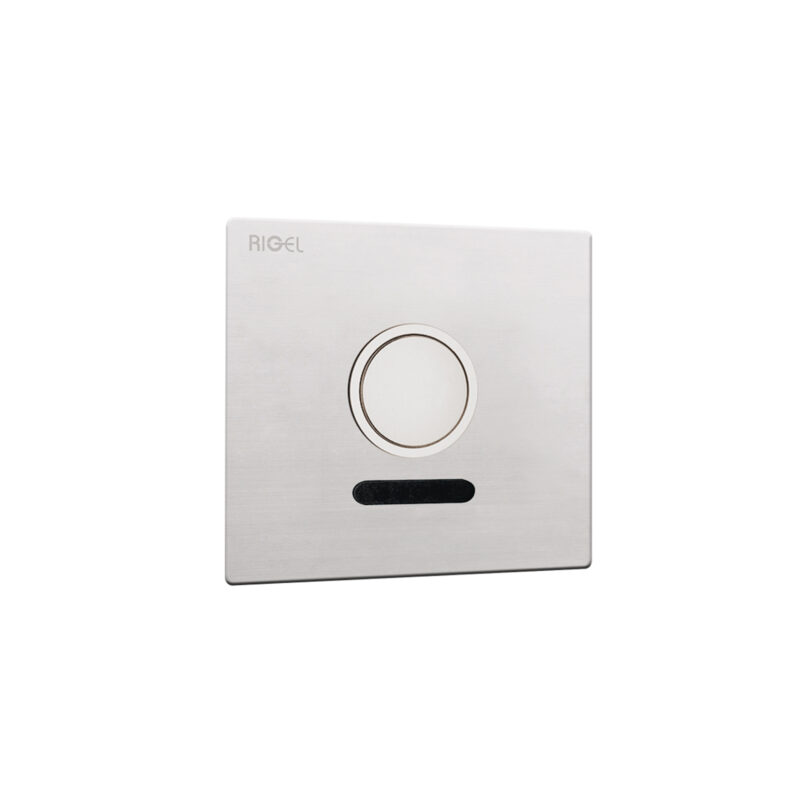

Product Features

• Automatic infra-red sensor activation water closet flush valve
• Heavy duty S/S grade 304 cover plate with satin finish
• Automatic sensor adjustment on installation
• Piston valve with build-in stainless steel strainer for screening out the debris and self-cleaning solenoid
• Electrical sensor is isolated and sealed in waterproof compartment
• Single flush manual override button incorporated

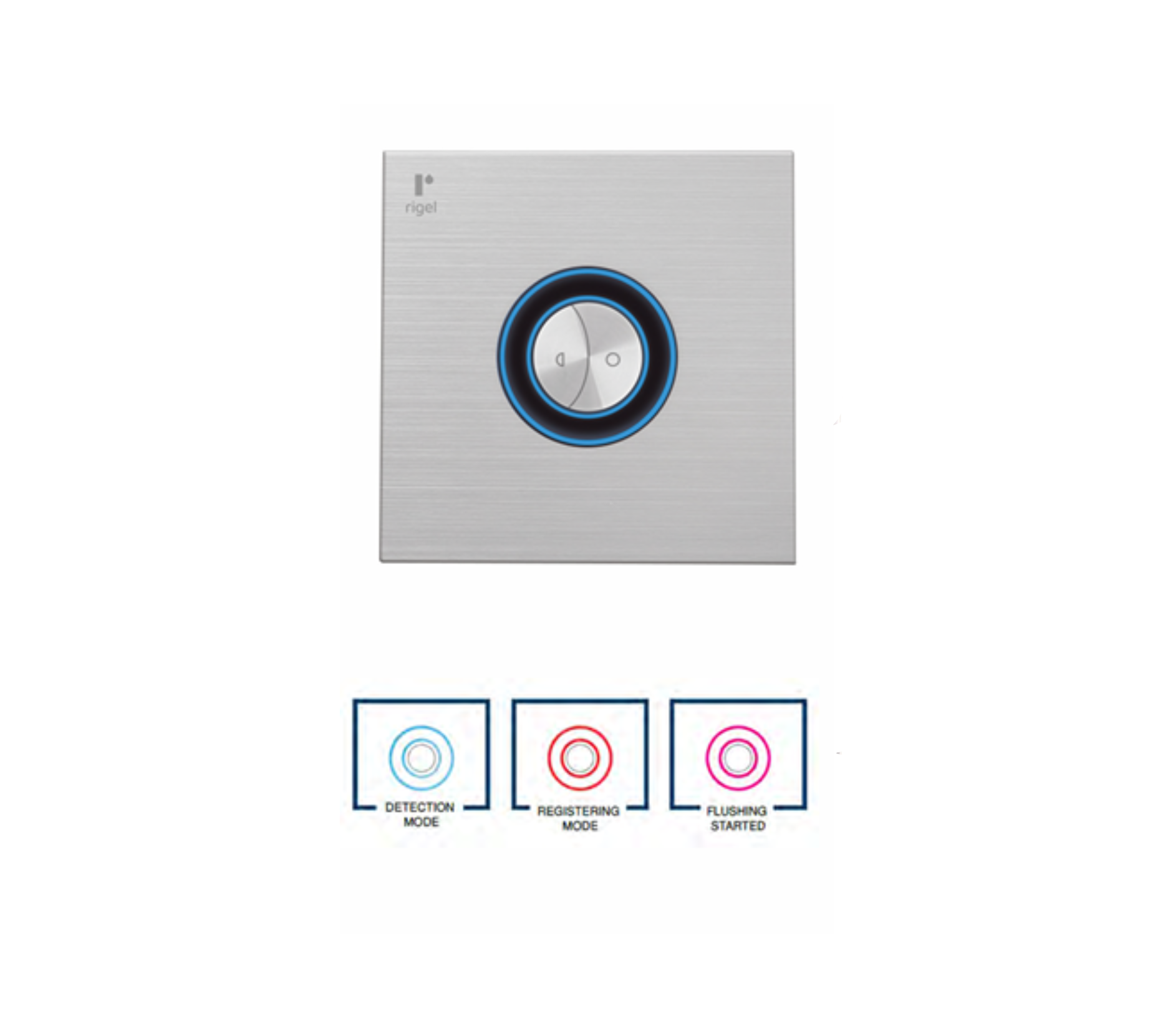

• Circular LED Indicator changes colour to reflect different stages
• Complete with 1 – 1/4″ vacuum breaker set

Product Specification

• Dimension: 180 (L) x 180 (H) mm (Front panel)
• Material: Brass casting flush valve with stainless steel satin finish panel
• Power Supply: 220 ~ 240VAC @ 50Hz
• Water Supply: BSPT G 1″
• Detection Time: 7 seconds minimum
• Detection Range: Self-adjusting to environment
• Operating Temperature: 0 – 40°C
• Supply Pressure: 135 kPa (flowing) – 860 kPa (minimum flow rate of 90 litre/min)
• Trap Seal Protection: Automatically flush once every 24 hours of non-use (optional)

Discharge Volume

• Full flush: 4.5L per flush
• Reduced flush: 3.0L per flush
