Product Features

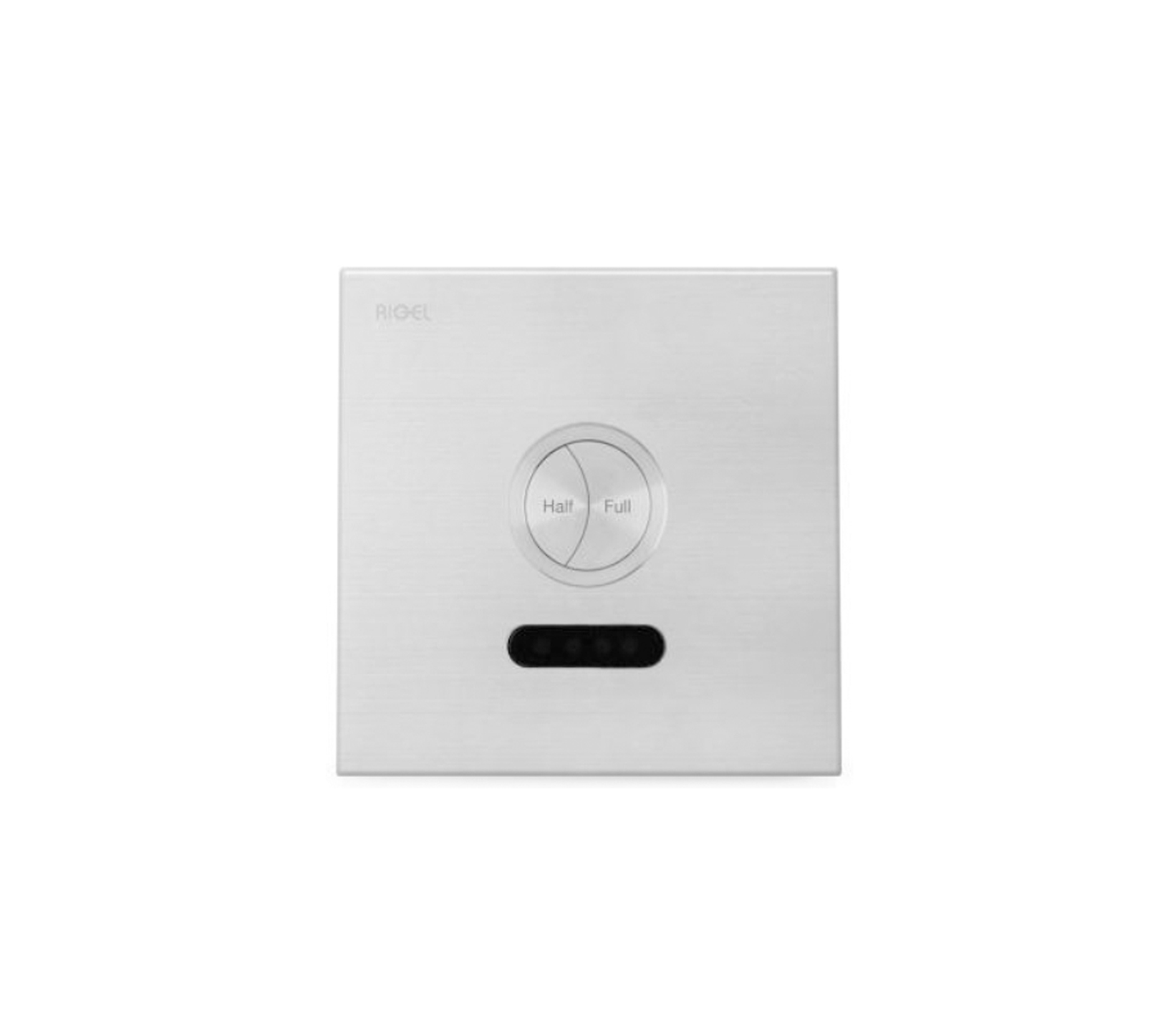

• Automatic infra-red sensor activation water closet flush valve
• Heavy duty S/S grade 304 cover plate with satin finish
• Automatic sensor adjustment on installation
• Piston valve with build-in stainless steel strainer for screening out the debris and self-cleaning solenoid
• Electrical sensor is isolated and sealed in waterproof compartment
• Dual flush manual override button incorporated
• Complete with 1-1/4″ vacuum breaker set

Product Specification

• Dimension: 140 (L) x 140 (H) mm
• Material: Brass casting flush valve with stainless steel satin finish panel
• Power supply: 230VAC 50 Hz
• Water supply: BSPT G 1″
• Detection time: 7 seconds minimum
• Detection range: self-adjusting to environment
• Operating Temperature: 0-40° C
• Supply Pressure: 135kPa (flowing) – 860 kPa (minimum flow rate of 90 litre/min)
• Trap seal protection: Automatically flush once every (24) hours of non-use (optional)

Product Specification

• FT-LP7X3 – L-Pipe for WC – 700 (H) x 300 (L) x ø32 (Dia) mm, SUS304
• FT-LP8X4 – L-Pipe for Squat Pan – 800 (H) x 400 (L) x ø32 (Dia) mm, SUS304

Downloads

Cutsheet Instruction Manual
