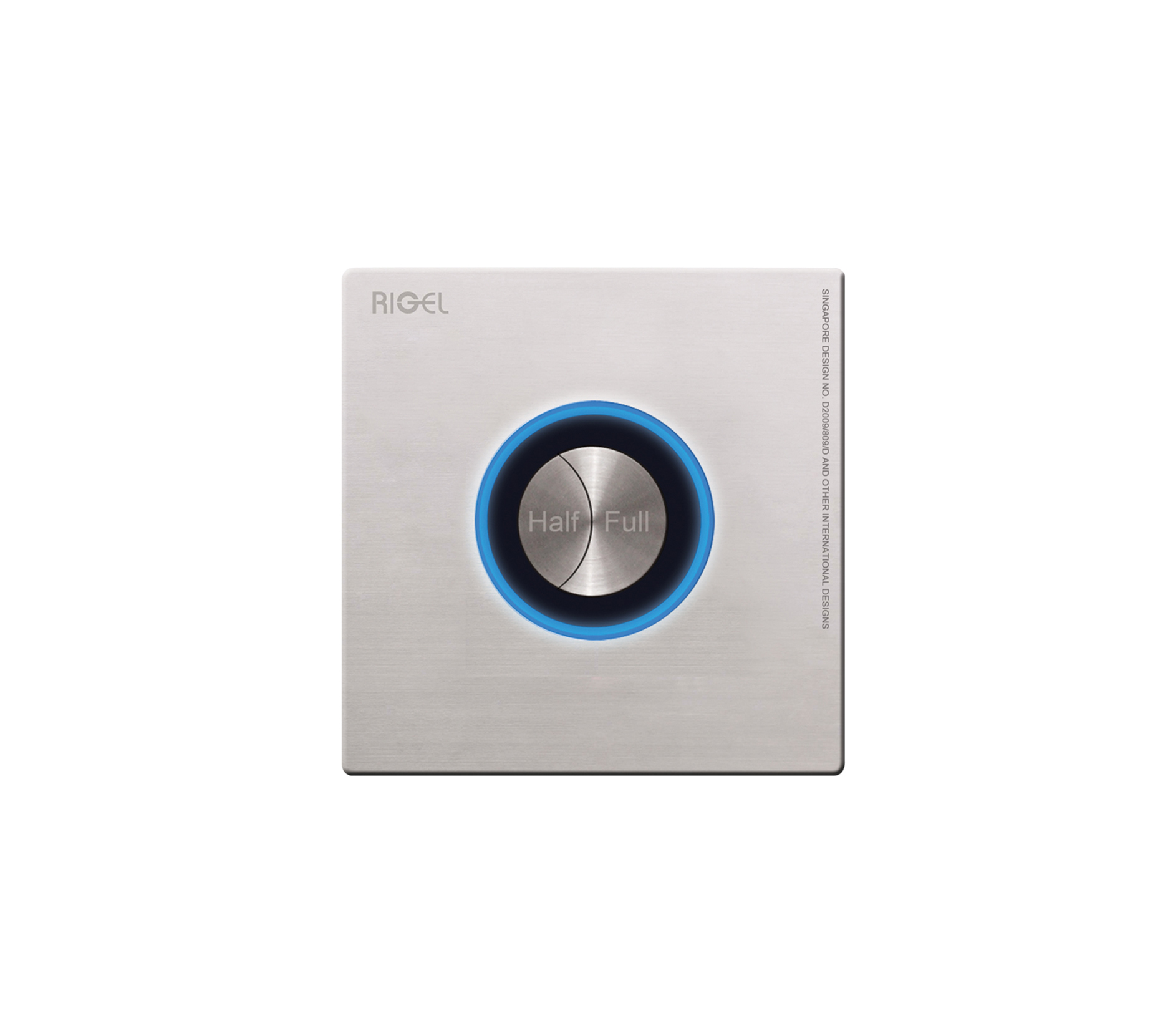

WC Enhanced Integrasense Flush Valve - Concealed Duct Type

Product code : AFS101DOMKISDFe

RM4,600.00

Product Specification

• Dimension : 140(L) x 140 (H) mm (Front panel)
• Material : Brass casting flush valve with stainless steel satin finish panel
• Power Supply : 230 VAC @ 50Hz
• Water Supply : BSPT G 1”
• Detection Time : 7 seconds minimum
• Detection range : Self-adjusting to environment
• Operating Temperature : 0 – 40 ?C
• Supply Pressure : 135 kPa (flowing) – 860 kPa (minimum flow rate of 90 litre / minute)
• Trap Seal Protection : Automatically flush once every 24 hours of non-use (optional)

Standard Accessories Included

• L-Pipe : FT-LP7X3 (300 (L) x 700 (H) x 32 (Dia) mm (For WC) | FT-LP8X4 (400 (L) x 800 (H) x 32 (Dia) mm (For Squat Pan)
• Inlet Rubber Bush : FT-BSHWC5530

Downloads

Cutsheet Instruction Manual
